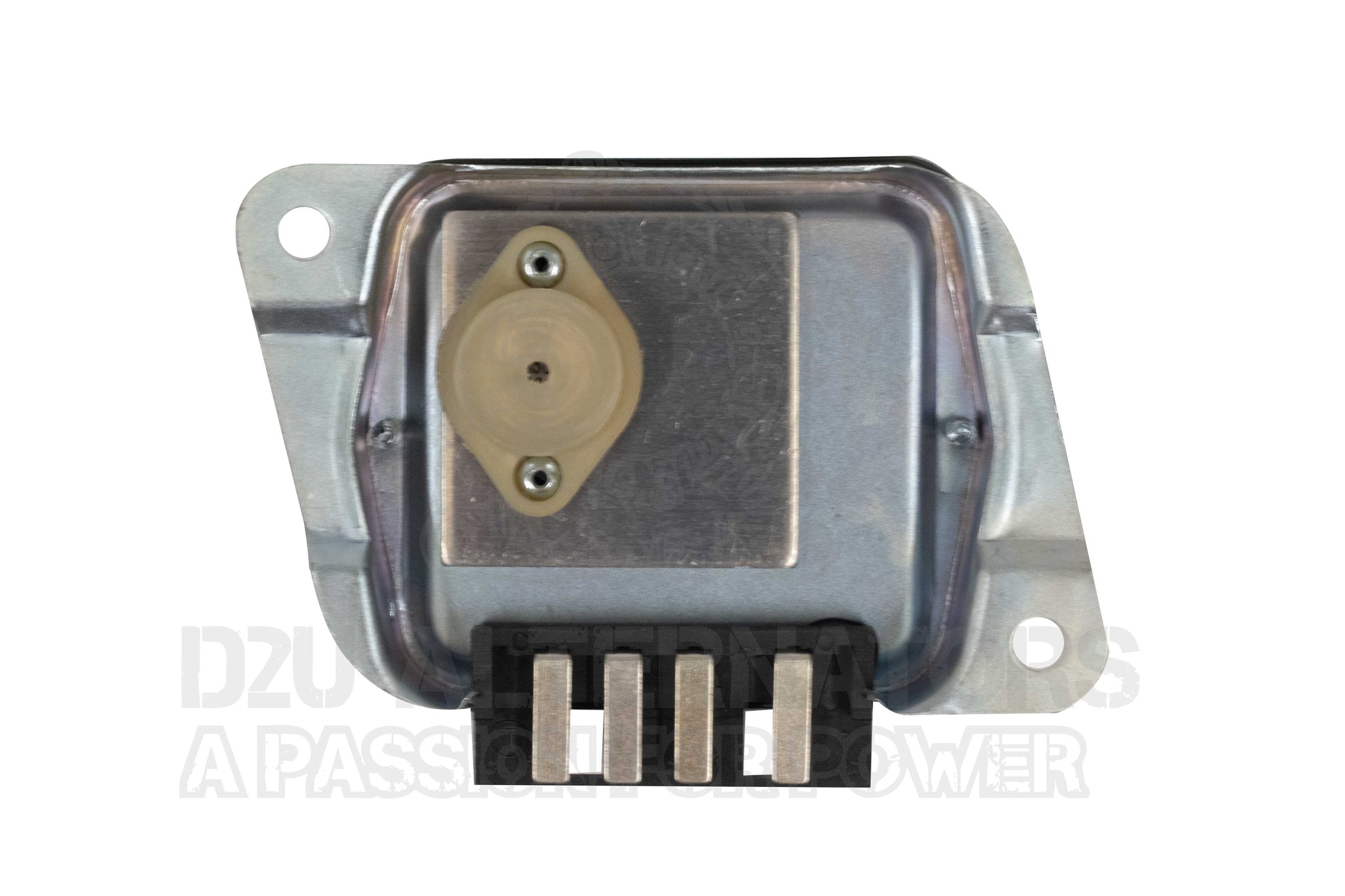

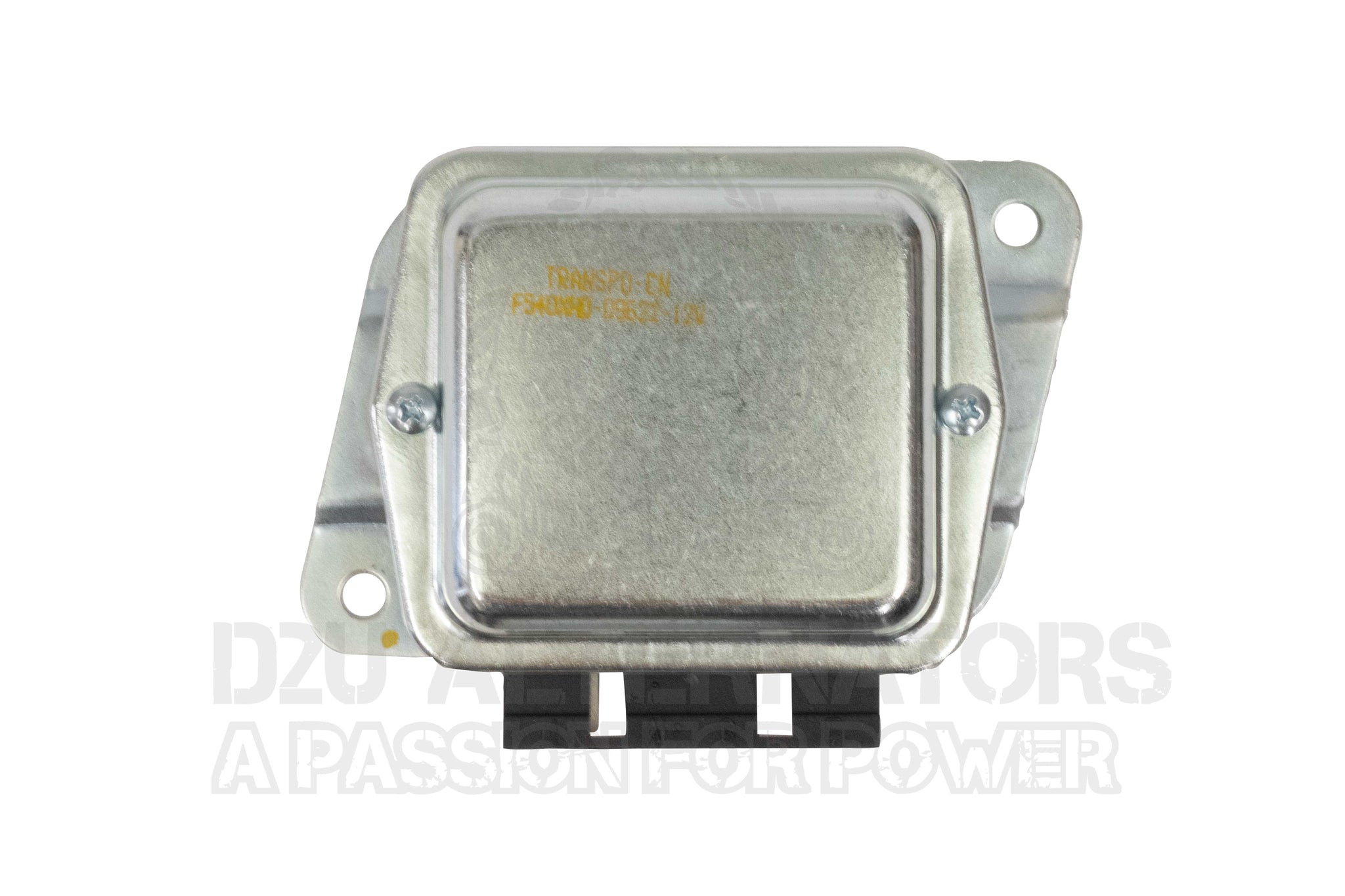

Transpo F540XHD External Adjustable Regulator
Tax included.
Heavy Duty Transpo F540-XHD Regulator
- Perfect For Externally Regulated High Output Alternators!
- Internal Potentiometer for Voltage Adjustment 13.5v - 15.8v
- 8 Amp Field Current Output Suitable for a Single 1.5ohm Rotor
- Default Voltage 14.2V
- Voltage Temperature Compensation
- B-Circuit, Negative Ground,
- Terminal ID: I = Light, A = B+, S = Stator or Switch (IGN+), F = Rotor Field+, Case = Ground
